Textures Missing on export of FBX out of C4D

  • Hello Topher,

    In order to successfully export your 3D model with the texture(s), you need to bake your materials into texture(s) before exporting to FBX.

    You can follow the Cinema4D export guide to learn more about baking textures for Lens Studio.

    Best,

    Amir.

    Comment actions Permalink
  • Hi Topher!

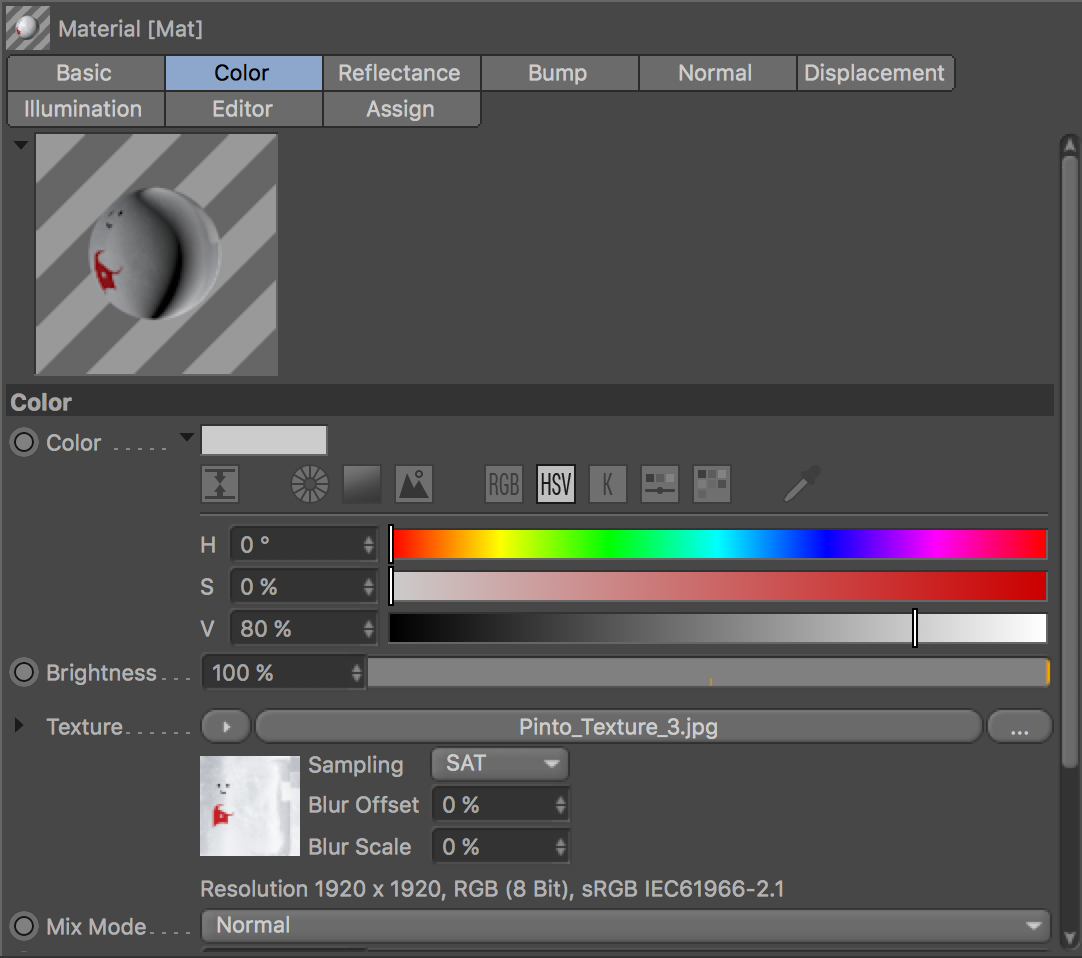

    With my model that you asked about here, I made the object editable (C on the keyboard), the texture was a seperate JPG file that I fixed up in BodyPaint so that there were no seams (see photo attached). When exporting as an FBX, I had "Textures and Materials" and "Embed Textures" checked. In case that doesn't work for you, I'd try baking the texture under "Objects -> Bake Texture" with your object selected.



    Good luck and let me know if that works or not!



    Jordan




    Comment actions Permalink
