Moving texture coordinates, not just scale

  • Hi Alfred,

    You can do this through the Material drawing the texture instead of going through the Face Texture itself.

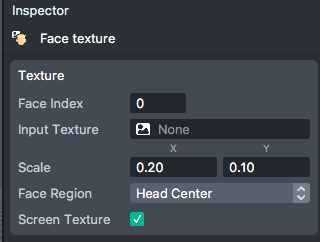

    First, make sure your Face Texture's Scale is set to (1,1), since we're going to scale it through the Material instead.

    Next, create a new Material for drawing the texture (if you don't have one already). If you're drawing it as a Sprite, use Add New > Material > Component Defaults > Sprite. In whatever component is drawing the texture (Mesh Visual, Sprite, etc), make sure "Material" is set to this Material.

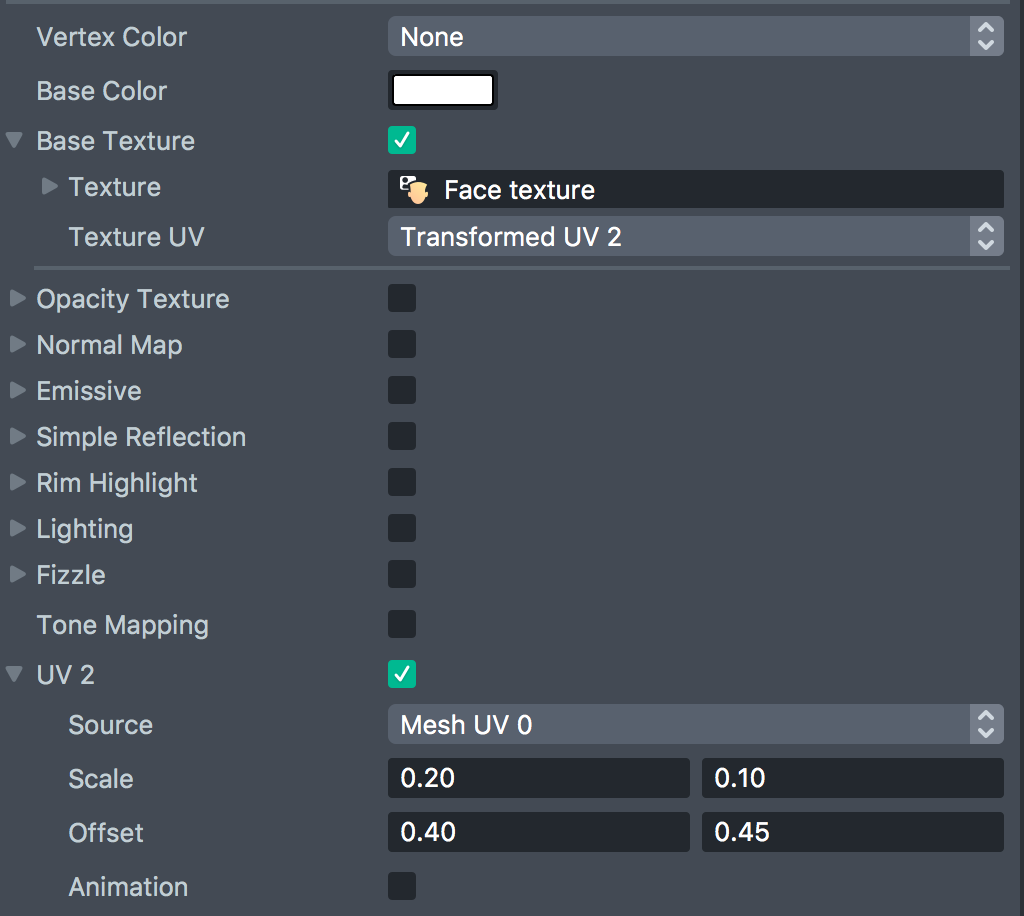

    Now, select the Material. In Base Texture, set "Texture" to your Face Texture, and set "Texture UV" to "Transformed UV 2". Enable the "UV 2" section and set "Source" to "Mesh UV 0". Here you can modify scale like you normally would in Face Texture, and also modify the offset. It should look something like this:

    To access these properties in script, use something like:

    //@input Asset.Material material

    // Set the scale
    script.material.mainPass.uv2Scale = new vec2(0.2, 0.1);

    // Set the offset
    script.material.mainPass.uv2Offset = new vec2(0.4, 0.45);


    Let me know if you have any more questions! And I'm very curious to see what you make with this :)

    Thanks,
    Jacob



    Comment actions Permalink
  • Jacob,

    Ah cool! I didn't realize that I could do this within the material.

    Though, as soon as I've changed the "Texture UV" to "Transformed UV 2" and turn on "UV 2", the texture map completely disappears. I've tried offsetting/scaling and trying solid textures to test if the texture shows up, but nothing seems to work--I just get the default gray color of the mesh I'm trying to map onto.

    Any ideas what I can test to see what's boogered?



    Comment actions Permalink
  • Hi Alfred,

    I'm not sure what's wrong, can you give some details about the material you're using? Can you maybe take a screenshot of the material settings?

    Thanks,
    Jacob

    Comment actions Permalink
  • Jacob,

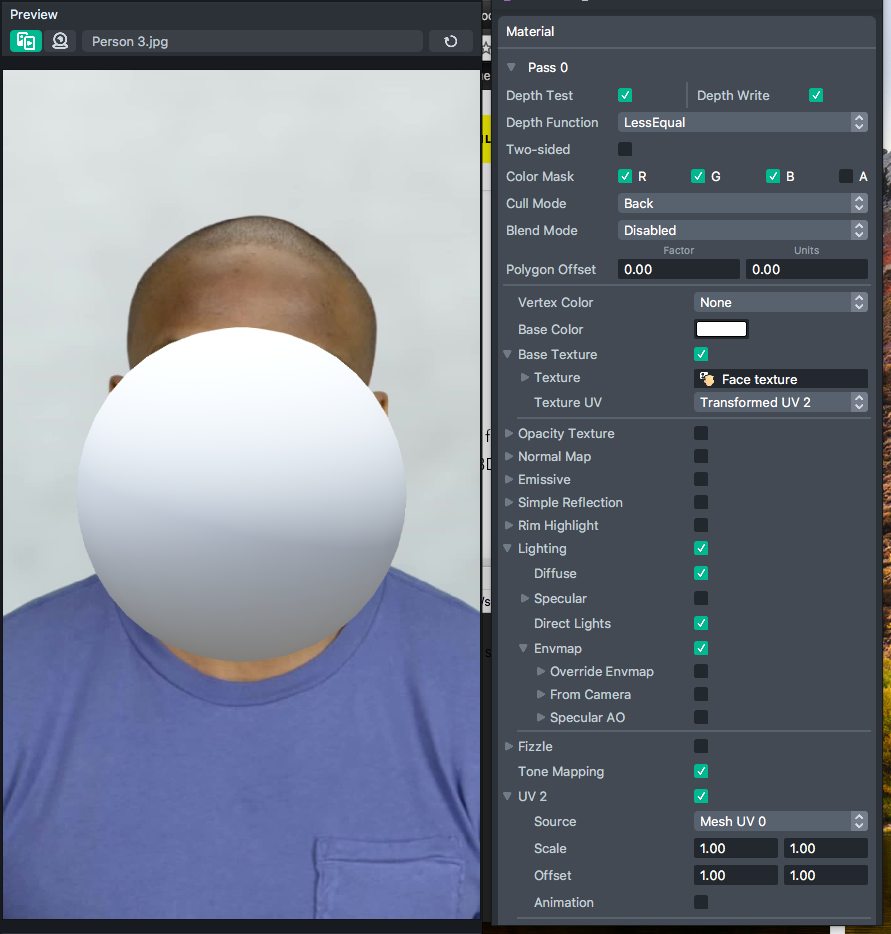

    There isn't anything special in the material. I'll attach a reproduction steps along with a screen cap of what I'm seeing



    To reproduce:

    1. Create a sphere (+ Add New > Sphere)

    2. Create a Material and assign the Mesh Visual in the Sphere to this material.

    3. Create a Face Texture and assign that to the Material's Base Texture

    4. Set the Texture UV in the Material to "Transformed UV 2"

    5. Optional: Check on "UV 2" n the Material



    By the end of step 4, you should see that the sphere has the default gray material.



    Comment actions Permalink
  • Hi Alfred,

    Try changing "Offset" to (0, 0) instead of the default (1, 1), since the offset is pushing the texture all the way to the side. Since the texture wrap mode is set to Clamp (by default), it's clamping the drawn pixels at position 1.0 which is the very edge of the texture. Hope this helps!

    Comment actions Permalink
  • That does. Thank you. I'm ashamed I didn't see this before.



    My request would be to have default offsets set to 0.



    Thank you!

    Comment actions Permalink
  • Sorry for the confusion! I agree that 0 is a much better default value, thanks for bringing it up. I'll contact the engineering team to add it to our list of feature requests.

    Thanks,
    Jacob
