Hi All,



I would love some help on a video sync issue.

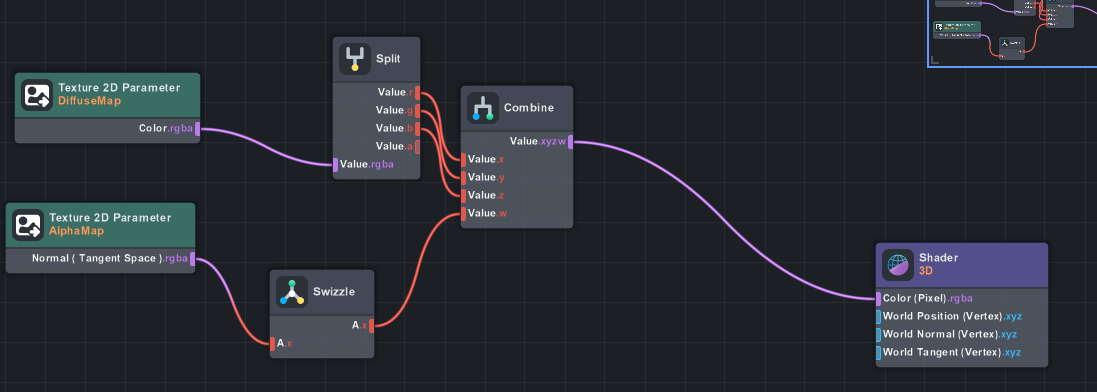

I'm trying to achieve a alpha-video effect through the Material Editor.

I'm using an mp4 for the RGB shader colors, and an mp4 for the A.

This gets me the desired result, but i'm unable to let the videos start at the same time.

There is a slight delay in timing resulting in the Alpha not lining up correctly with the RGB. Any suggestions on how to ensure/force the videos to run in sync?



1
  • Avatar
    Tom GoSpooky
    Snap Lens Network Member Lens Studio Team

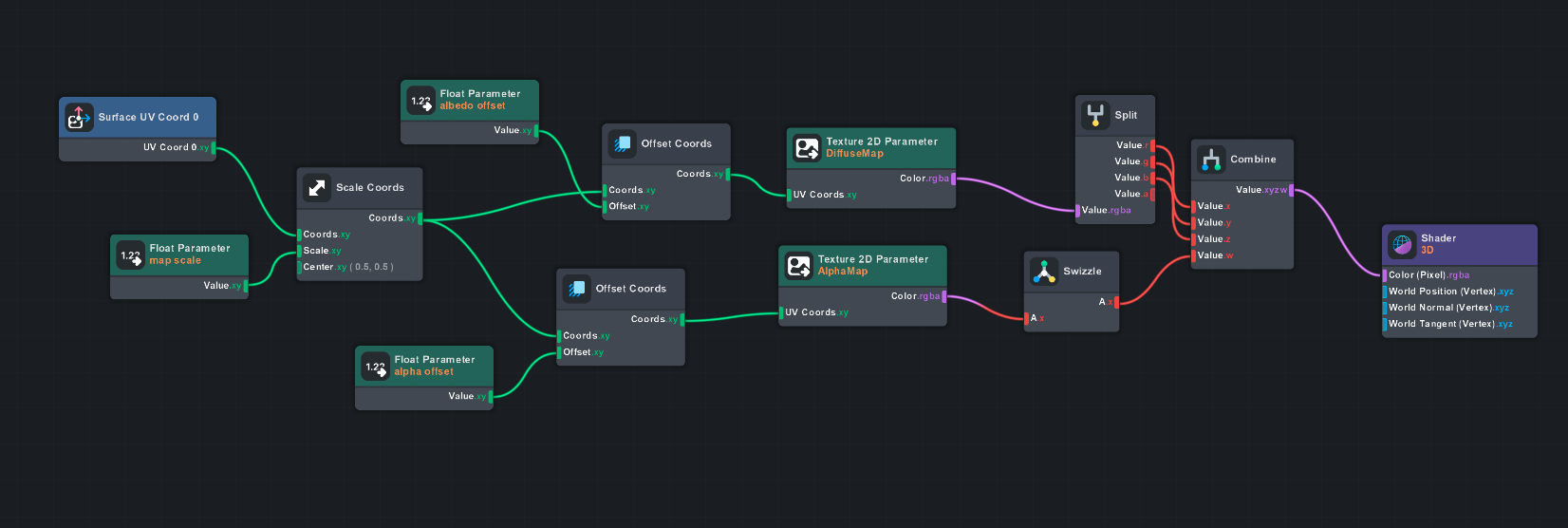

    I was able to solve this by rendering the alpha (through a luma matte) and the rgb into a splitscreen video and use UV scale and offset to blend them together

    Comment actions Permalink
  • Avatar
    Olha
    Snap Lens Network Member Lens Studio Team

    Hi!, Tom Geurts!

    I am glad you figured it out, putting alpha and diffuse on one texture is the only way to synchronize them.

    Thank you so much for providing the solution!

    Best

    Olha

    Comment actions Permalink
  • Avatar
    Permanently deleted user
    Snap Lens Network Member Lens Studio Team

    There is sincerely sone undesired conduct here, than you for reporting program for new app! Our engineers will inspect this
