How to loop 3 triggers

  • Hi Liane,

    Behavior script doesn't support this on its own right now. But you can use a simple script to cycle through a few Behavior scripts.

    // @input Component.ScriptComponent triggerBehavior
    // @input bool autoTriggerFirst = true
    // @input Component.ScriptComponent[] responseBehaviors

    var curIndex = -1;

    function triggerCurrent() {
    script.responseBehaviors[curIndex].api.trigger();
    }

    function next() {
    curIndex = (curIndex+1) % script.responseBehaviors.length;
    triggerCurrent();
    }

    script.triggerBehavior.api.addTriggerResponse(next);

    if (script.autoTriggerFirst) {
    next();
    }

    Just add this to its own object.

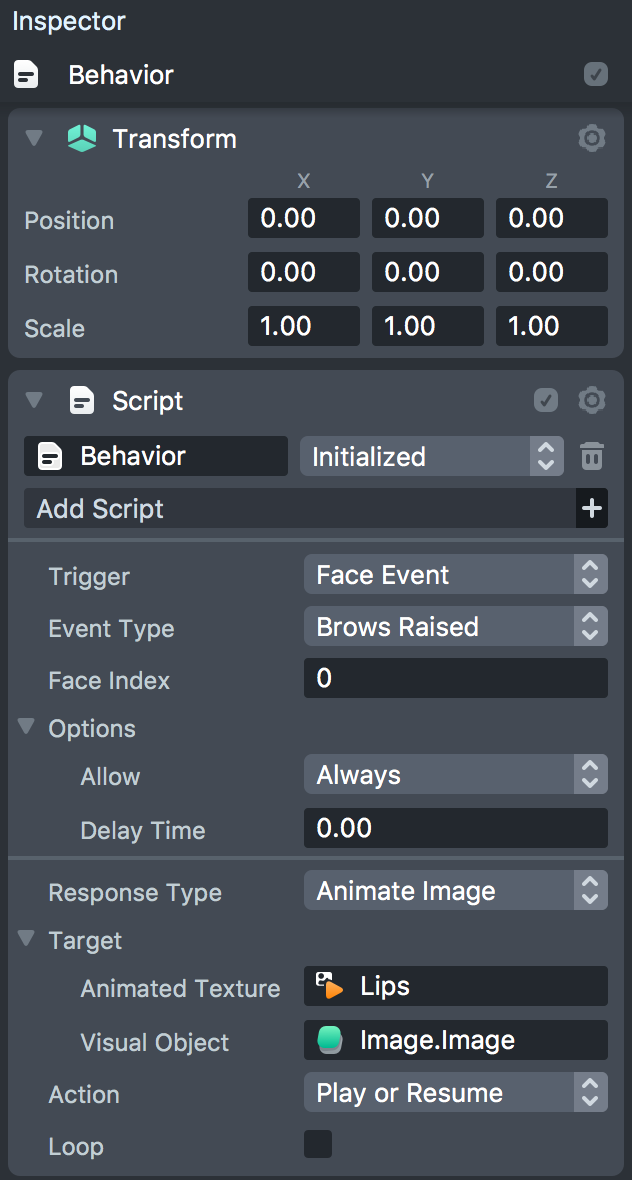

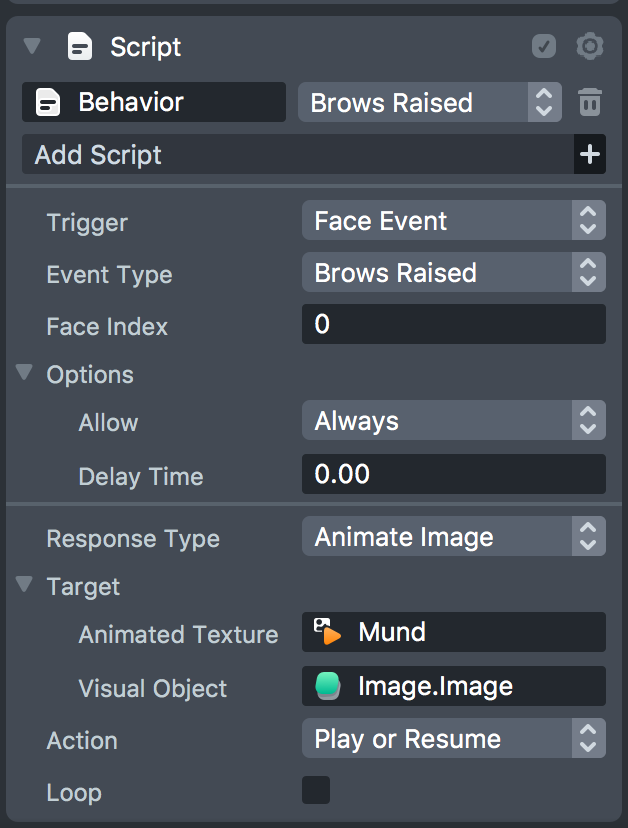

    For "Trigger Behavior", hook up a Behavior that has the "Brows Raised" trigger type and "None" response type.

    For "Response Behaviors", add all the Behaviors that you want to trigger to this list. Make sure that "Trigger Type" is set to "None" for all of them.

    Hope this makes sense. Let me know if you need any more help!

    Jacob

    Comment actions Permalink
  • Hi Jacob,

    Thanks for the support.

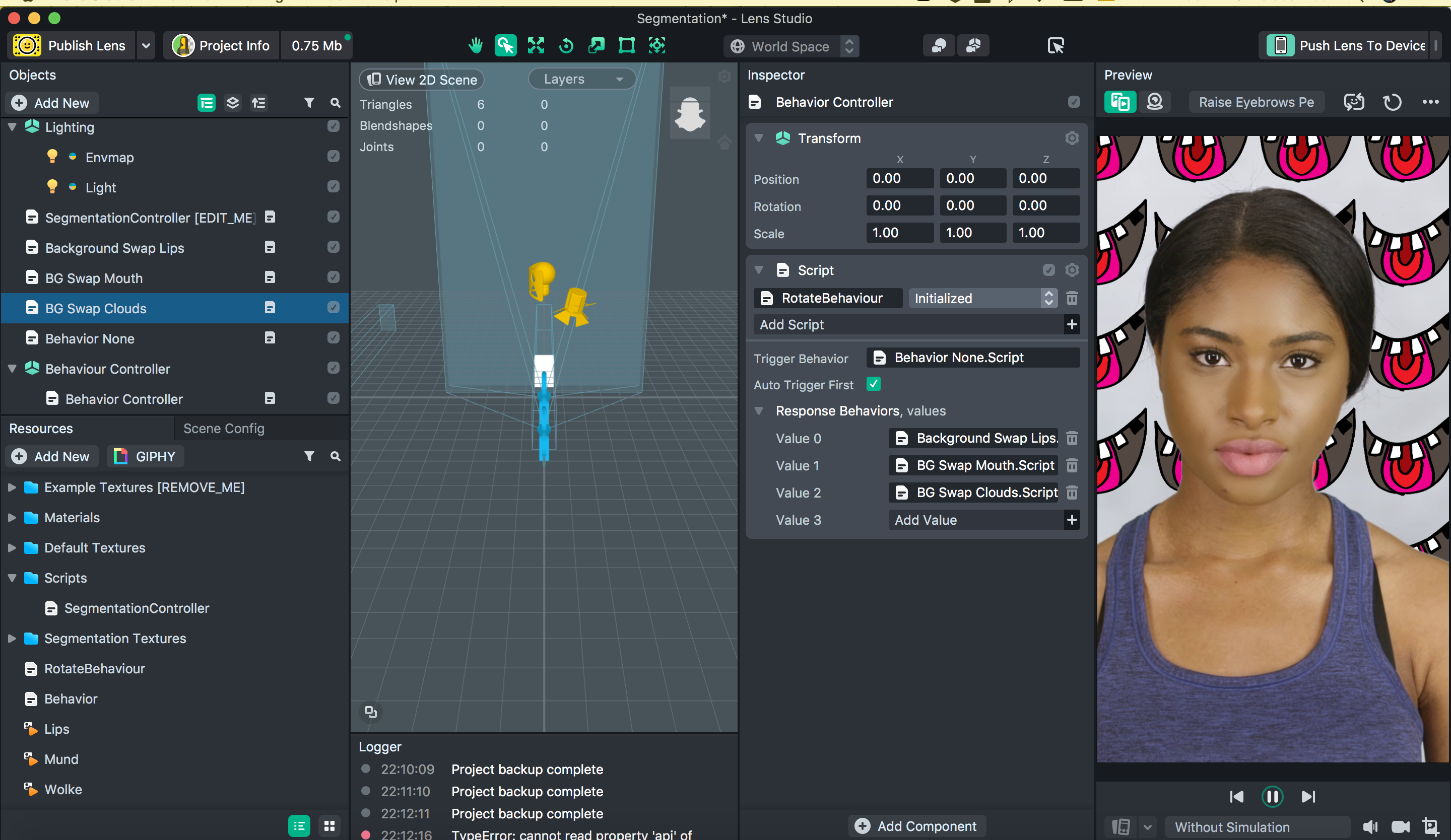

    I managed to create a lens that circled through following Behaviour Scrips:

    Set 1 (Image Mouth) Enabled

    Set 1 (Image Mouth) Disabled

    Set 2 (Image Lips) Enabled

    Set 2 (Image Lips) Disabled

    Set 3 (Image Clouds) Enabled

    Set 3 (Image Clouds) Disabled

    All of them are attached to the users Lips as a test

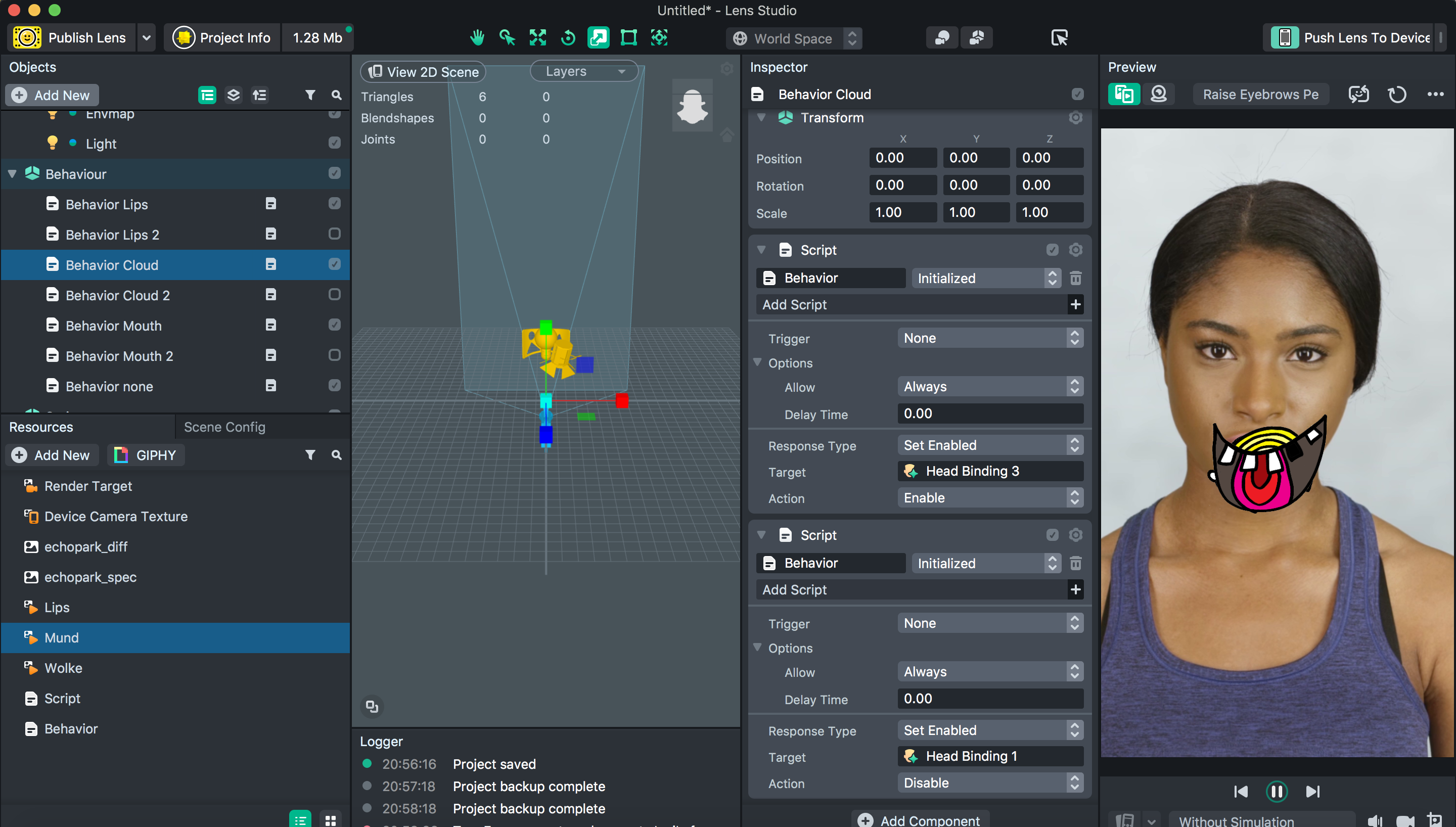

    What I would like to do is to do the following

    Set 1 (Image Mouth) Enabled

    Set 2 (Image Lips) Enabled, (Image Mouth) Disabled

    Set 3 (Image Clouds) Enabled, (Image Lips) Disabled

    >

    Set 1 (Image Mouth) Enabled, (Image Clouds) Disabled



    I tried to put Enable and Disable in one Behaviour Script - But it won´t work.

    how do I approach the second use case?



    Many Thanks for your Support!

    Comment actions Permalink
  • I also tried it out on Background Segmentation with Response Type Animate Image and it worked really well :D Thank you for the script :D



    Comment actions Permalink
  • Hey Liane,

    I'm glad the script worked for you!

    For your other question, here's a variation on that script which will treat all the Behavior scripts on an object as a set, and trigger them all at once. So for each set, you should group all the Behaviors you want onto the same object.

    // @input Component.ScriptComponent triggerBehavior
    // @input bool autoTriggerFirst = true
    // @input SceneObject[] responseSets

    var curIndex = -1;

    var scriptSets = [];
    for (var i=0; i<script.responseSets.length; i++) {
    var obj = script.responseSets[i];
    var componentCount = obj.getComponentCount("Component.ScriptComponent");
    var set = [];
    for (var j=0; j<componentCount; j++) {
    var scriptComponent = obj.getComponentByIndex("Component.ScriptComponent", j);
    if (scriptComponent.api.trigger) {
    set.push(scriptComponent);
    }
    }
    scriptSets.push(set);
    }

    function triggerCurrent() {
    var set = scriptSets[curIndex];
    for (var i=0; i<set.length; i++) {
    set[i].api.trigger();
    }
    }

    function next() {
    curIndex = (curIndex+1) % scriptSets.length;
    triggerCurrent();
    }

    script.triggerBehavior.api.addTriggerResponse(next);

    if (script.autoTriggerFirst) {
    next();
    }

    Let me know if you need any more help!

    Comment actions Permalink
