Add an interactive tap to an Image Marker project

  • Hello Xen,

    First use the Interactive Tap template to make sure your tap animation is working fine.

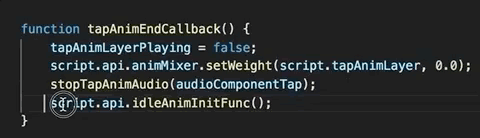

    Then, if you want your animation to hold at the last frame in interactive tap template. You need to open the "TapAnim" script and delete the line 62 which is


    This line means when the animation ends go back and play the Idle animation which we don't need, so we're deleting it.

    Now we're ready to export our Interactive Tap object. In order to that, in the Objects panel select the "WorldObjectController [EDIT_ME]" and right click then select the "Export Object".


    Now we exported, open the Marker Template and Import your exported object by dragging and dropping it in the Objects panel.

    Delete the "Mark The Monster [REMOVE_ME]" and set the "WorldObjectController [EDIT_ME]" object as a child of the image marker.

    Make sure to scale and position your object based on the marker.

    Then, you need to select the "WorldObjectController [EDIT_ME]" object and change the Camera in the "Touch" component to main camera which is called "Camera".

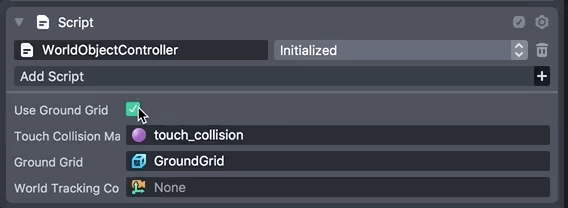

    Finally uncheck the "Use Ground Grid" on "WorldObjectController" component.

    Now you push your lens to your device and it should work fine on your phone.




    Comment actions Permalink
  • Thanks for the detailed reply. Much appreciated Amir!

    Comment actions Permalink
