Screen FX on approach

  • Hey Samuel!

    Cool idea! In the Interactive Approach Template the animation is driven by ApproachAnim.js. In this script you can notice that there are references to the animation mixer (script.api.animMixer) provided by IdleAnim.js.

    In order to drive another object's animation, you can create your own animation mixer input.

    At the top of ApproachAnim.js add this line:

    // @input Component.AnimationMixer approachMixer

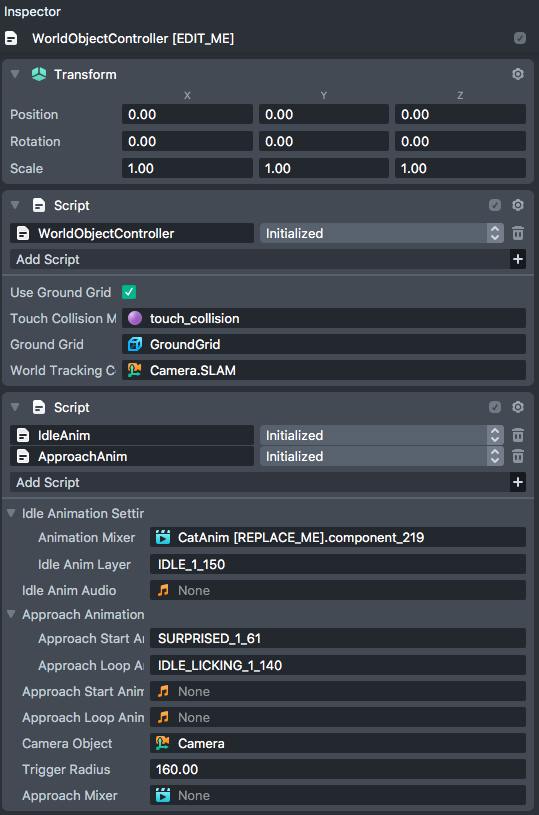

    Now, in the Inspector of WorldObjectController you will see a new input called Approach Mixer

    Add the animation mixer you want to play there by pressing the field and selecting your animation in the popup.



    Now we'll just need to tell ApproachAnim.js to use this animation mixer instead. Anywhere you see

    script.api.animMixer

    replace it with

    script.approachMixer

    And now that animation should play instead!

    Can't wait to see the result!



    Cheers,

    Jon
