Bald ML and segmentation

Follow

Alex Scale

Snap Lens Network Member Lens Studio Team

• August 27, 2021 11:56

Hey all,

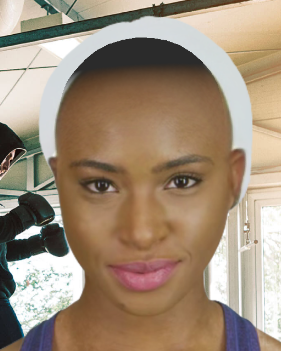

Is it possible to combine the bald ML and person segmentation? We are fiddling with the settings but can't get the halo to disappear, The halo is the hair of the user.

0

•

  modelsbymike3d

  Snap Lens Network Member Lens Studio Team

  • August 27, 2021 16:17

  Segmentation comes directly from the camera texture, and unfortunately there's no way to change that.

  What you'll need to do instead is create a separate render target for the bald effect.

  Create a new render target and a new layer

  Create a new orthographic camera and set it to the new layer

  Put the bald ML inside the new camera and set it to the new layer

  Change the clear color input on the camera to the original render target

  Change the "Tweak_N86" input on the bald ML to the original render target

  Change the input texture on the "Face Crop Texture Wide" to the original render target.

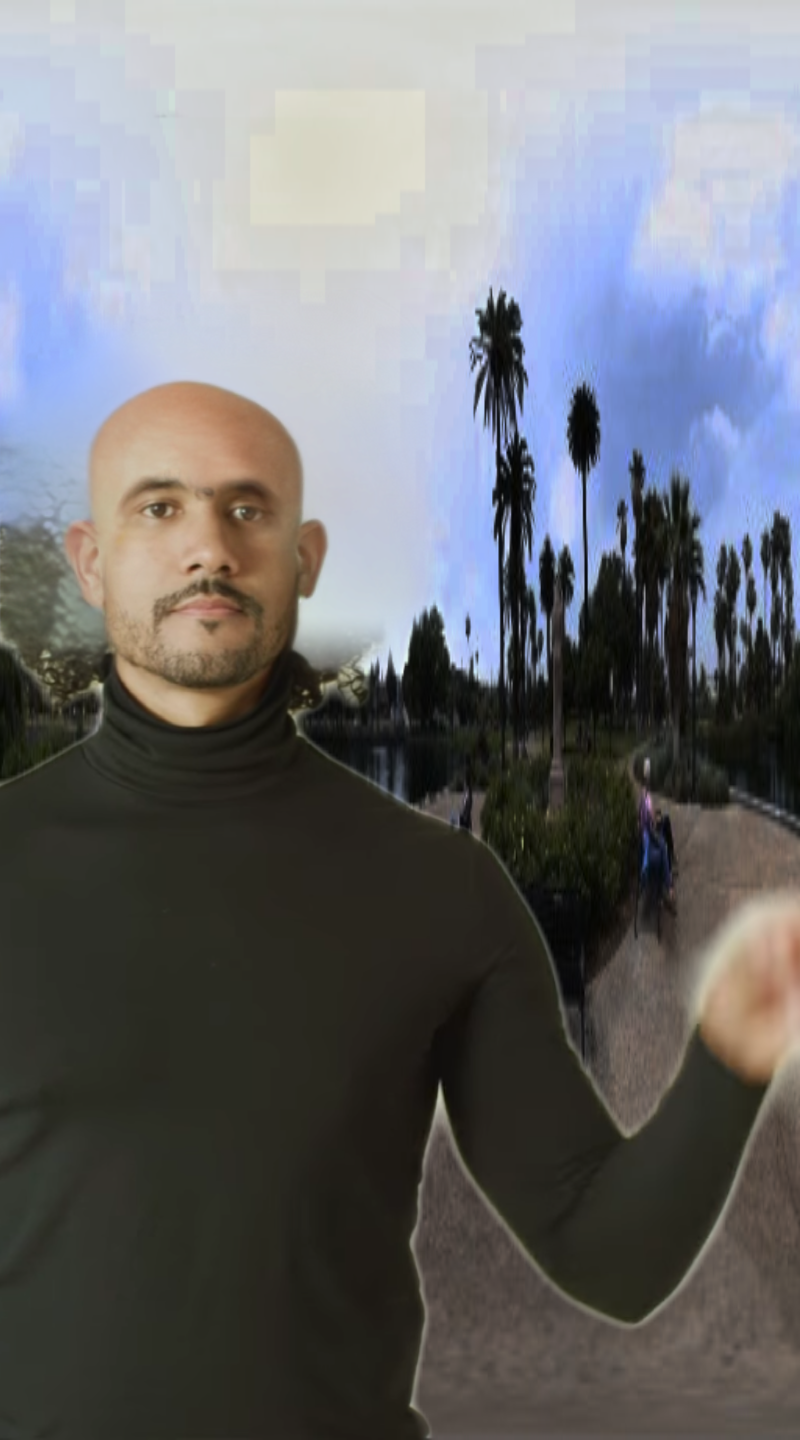

  There will still be a slight halo around the user's head, but it will match the background image much better.

  Here's a demo project you can take a look at with everything already setup and ready to go. https://drive.google.com/file/d/18MWXy3XRwbQZD8SZopsW7jktq-hMN7W_/view?usp=sharing

  Comment actions Permalink
•

  Vivek.0525

  Snap Lens Network Member Lens Studio Team

  • August 27, 2021 16:23

  Thank you for this bro modelsbymike3d
